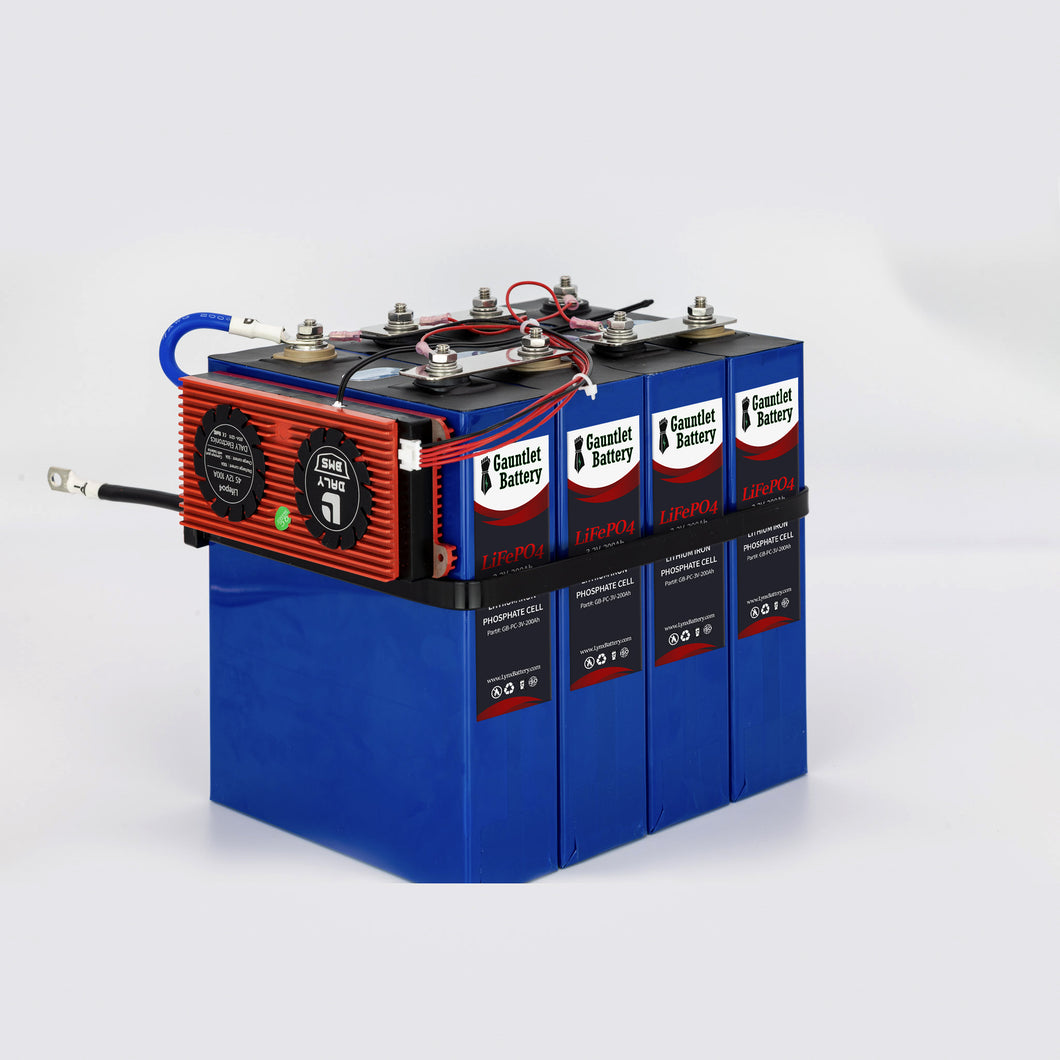

Includes 4 - 3.2V 206Ah Prismatic Cells with 3 Bus Bars and 8 Lug Nuts.
Built with quality materials and easy to use Gauntlet Battery rechargeable prismatic cells can be mounted in any orientation, even upside down, and weighing only 25 lbs, It is half the weight of their lead-acid/ AGM battery counterparts.
Battery Specifications:
- Nominal Voltage: 12V
- Capacity: 206Ah
- Weight: 25 lbs, (11.3 Kg)
- Size: 32”x7”x5.2” (lxwxh)
- Cycle Life: 5000/5 years
Prismatic Cell Specifications:
- Nominal Voltage 3.2V
- Capacity 206Ah
- Core size 6.81" x 1.88" x 6.1" (lxwxh)
- Cell Weight 6.16 lbs
- Charging Current; Standard Charge 0.2C, Max Charge 1.5C
- Max Discharging Rate 2C
- Cut-off Voltage; Charging 3.65V Discharging 2.5V
- Recommended SOC Window SOC 10%~90%
- Internal Resistance 0.1~0.5mΩ Fresh Cell, 30% SOC
- Working Temperature; Charging 0~45°C Discharging -20℃~55℃,
- Storage Temperature; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃
Additional Applications:
Lithium-Ion 12V 120Ah prismatic deep-cycle cells are ideal and preferred for supporting handling equipment, emergency lighting systems, solar & wind power, off-grid applications, and uninterrupted standby power supply systems.
