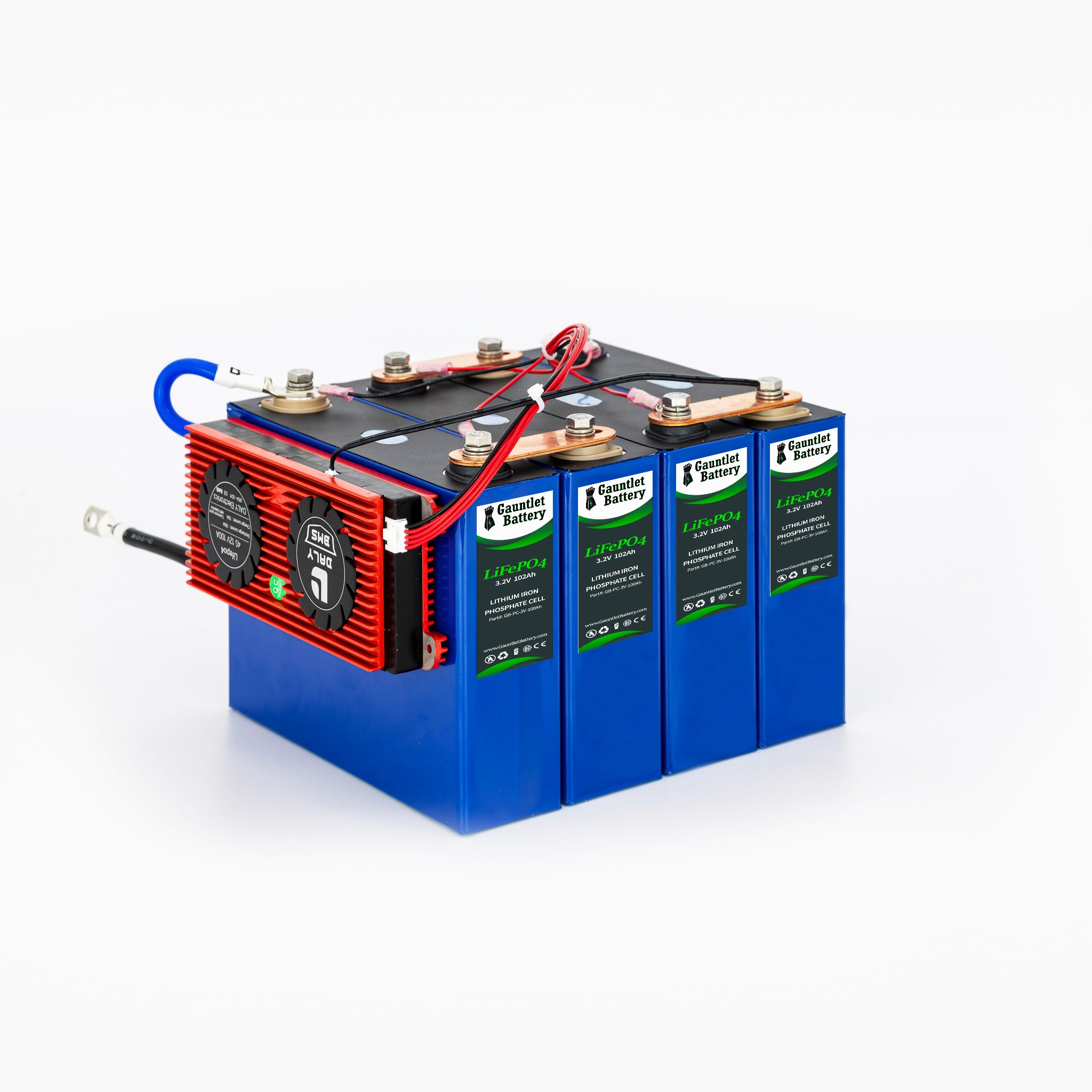

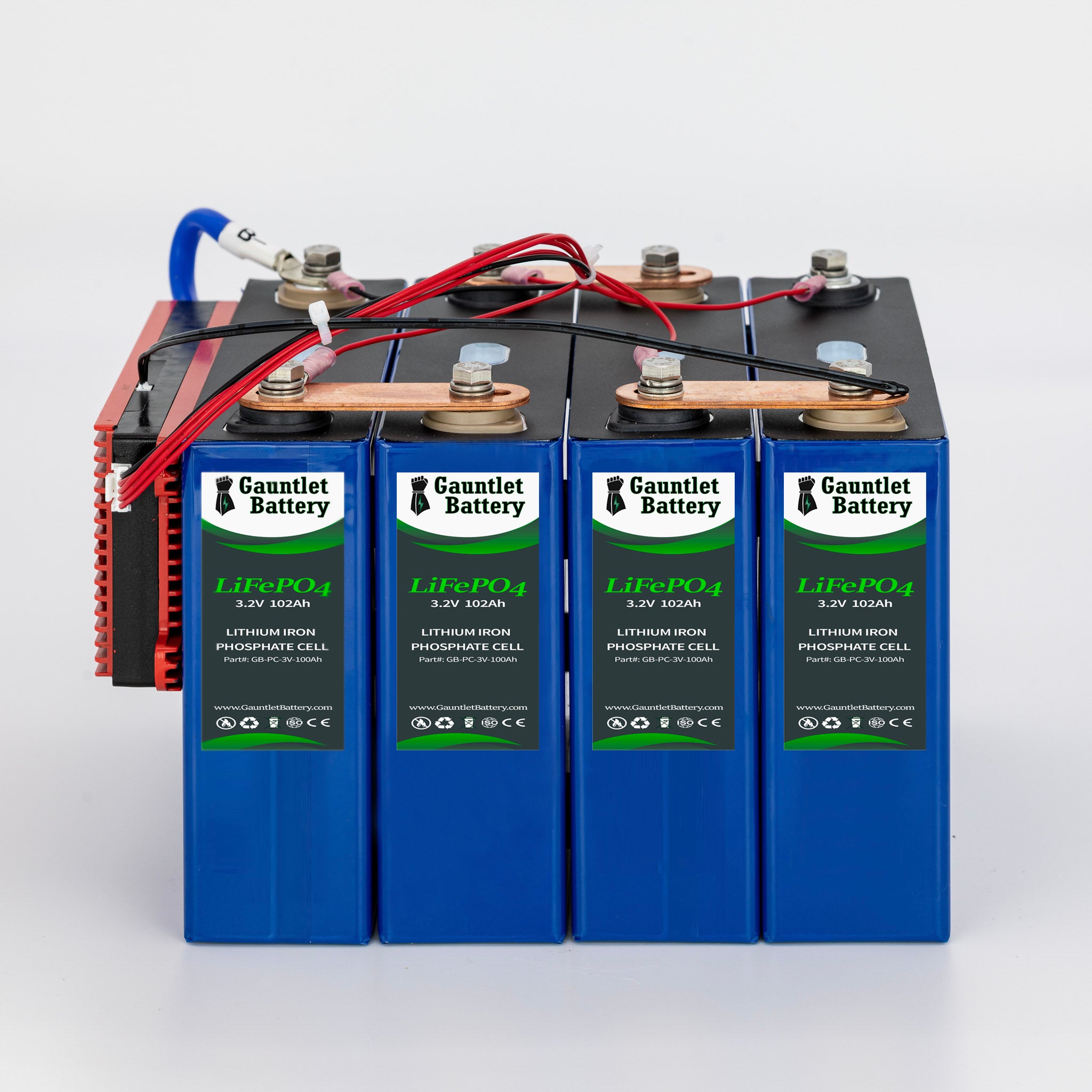

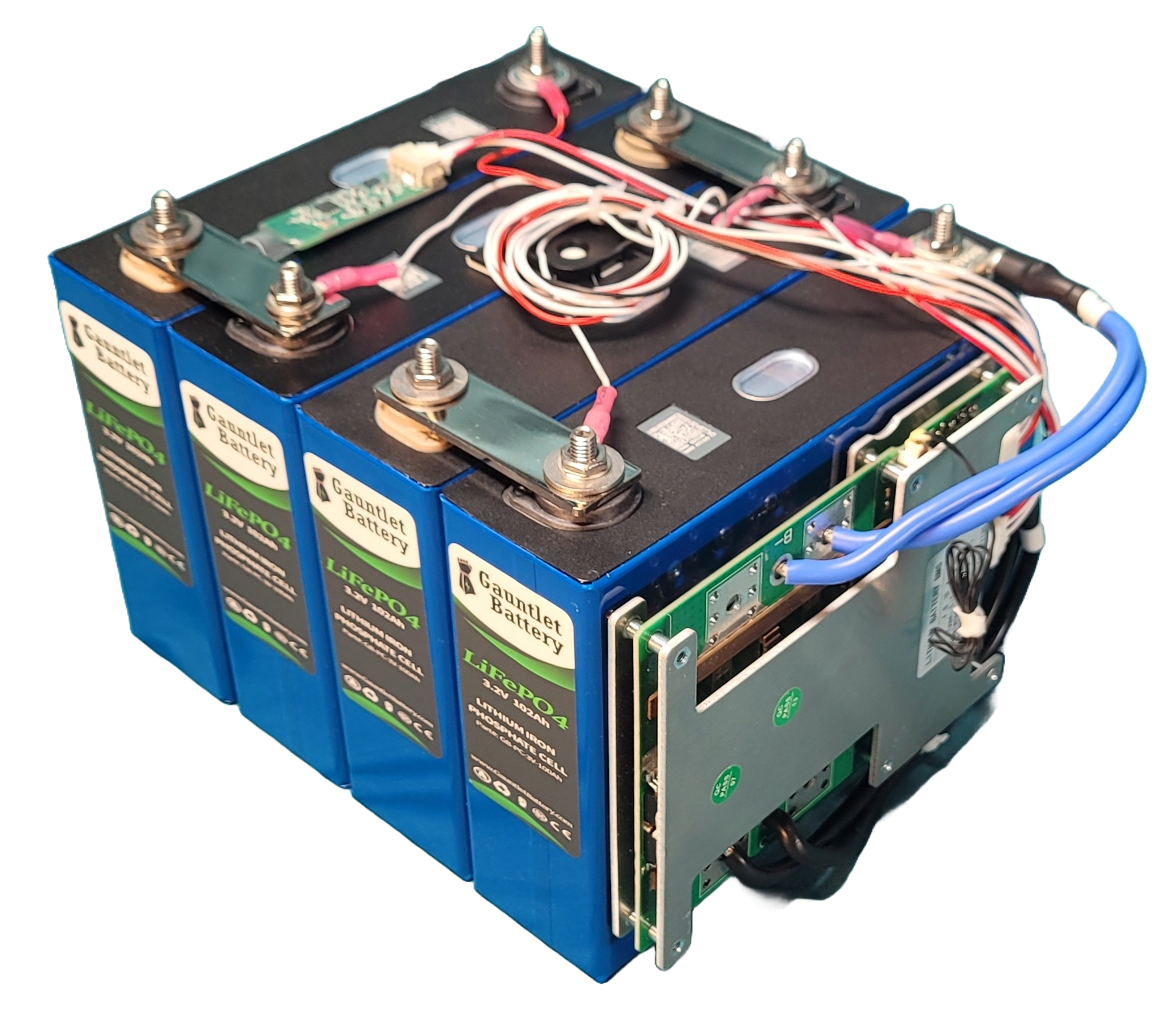

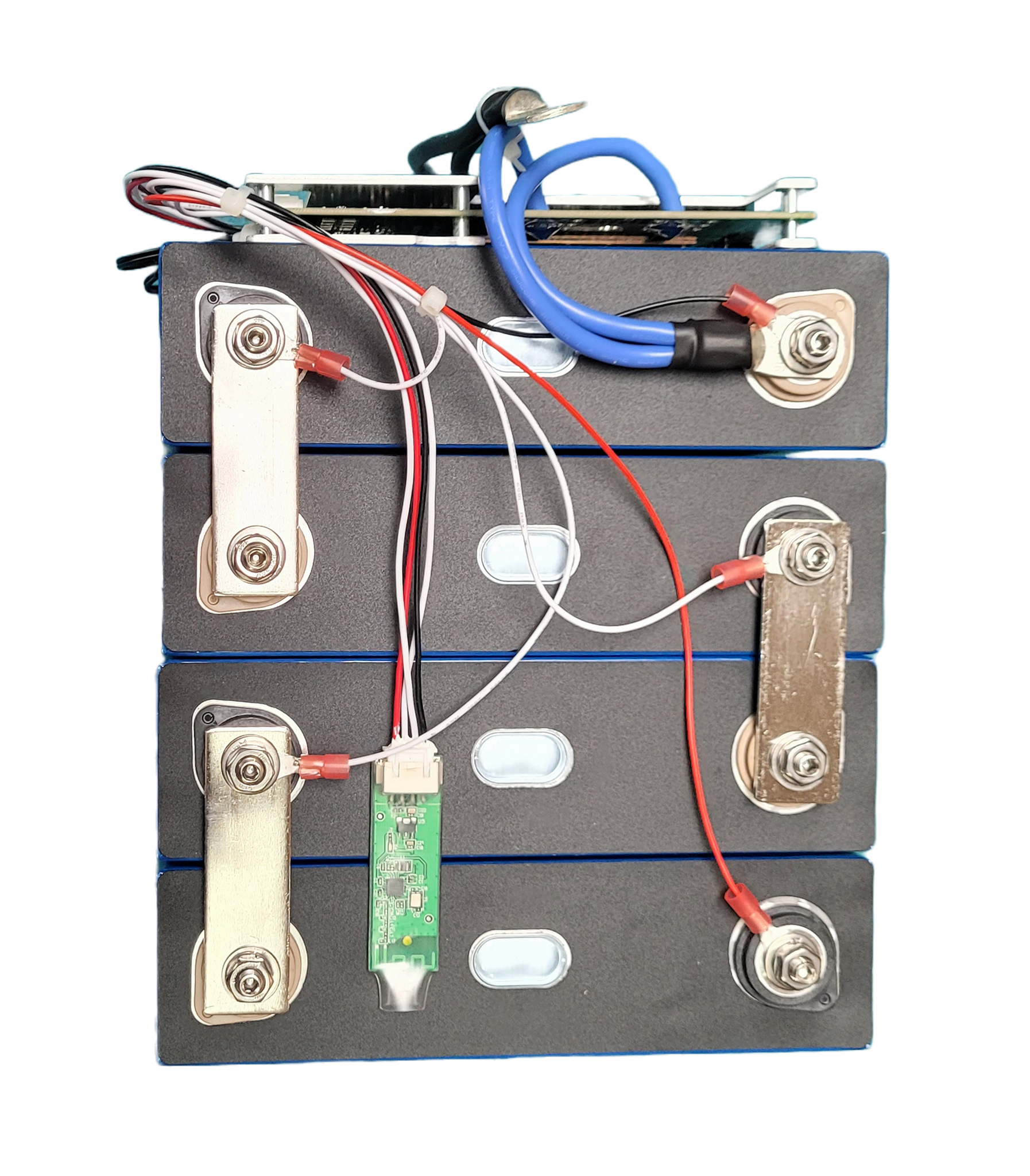

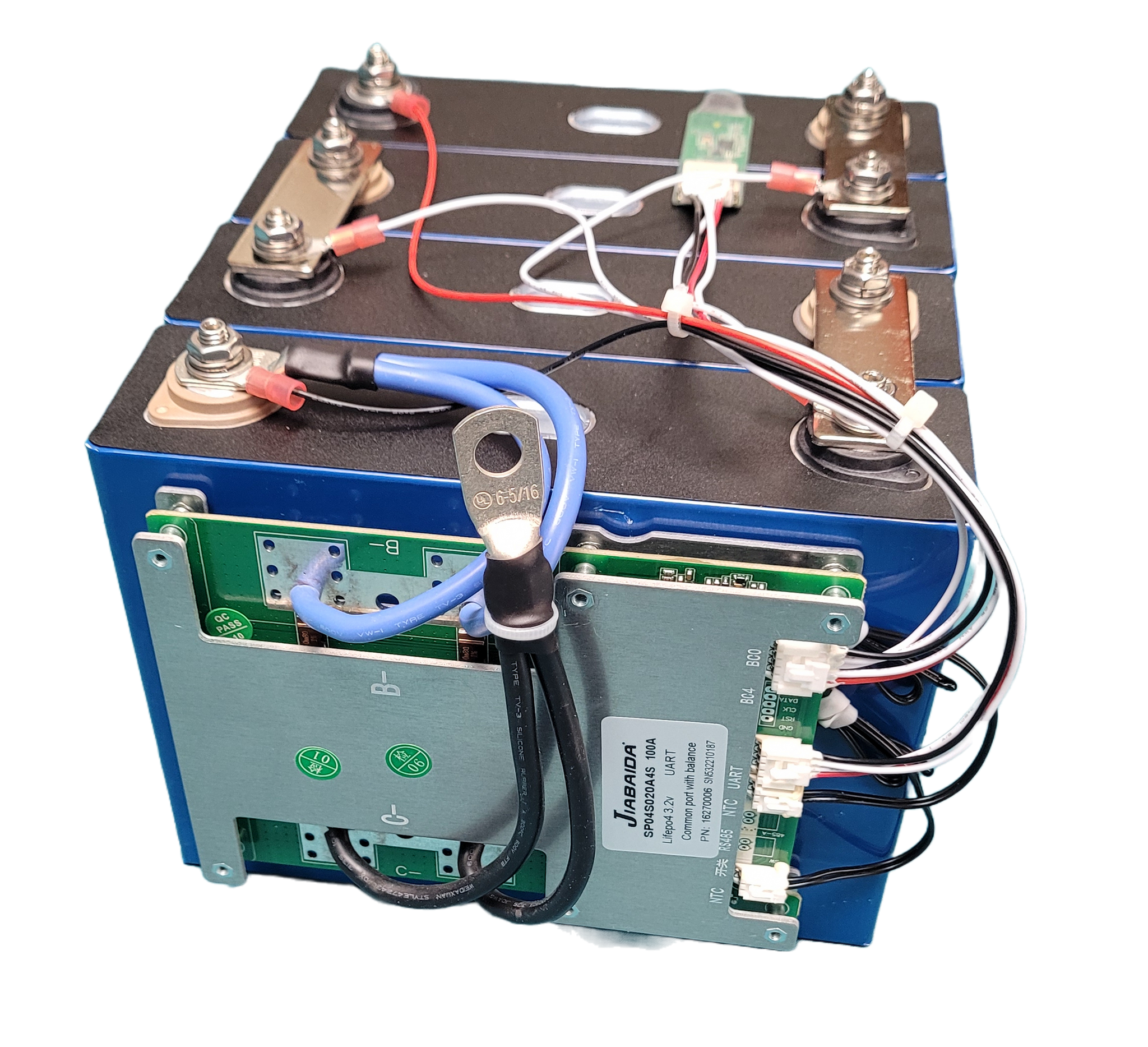

Includes 4 - Prismatic 3.2V 100Ah LiFePO4 Cells with Daly BMS, 3 Heavy Duty Bus Bars, 8 Lug Nuts, 2 - 36" Zip Ties, and 1/2" x 36" 3M VHB Tape, and instruction manual.
Built with quality materials and easy-to-use Gauntlet Battery rechargeable prismatic cells can be mounted in any orientation, even upside down, and weighing only 23 lbs. It is half the weight of their lead-acid/ AGM battery counterparts.
Battery Specifications:
Nominal Voltage: 12V
Capacity: 100Ah
Weight: 23 lbs, (10.5 Kg)
Size: 10”x7”x5.5” (lxwxh)
Cycle Life: 3000/3 years
Prismatic Cell Specifications
Nominal Voltage 3.2V
Capacity 100Ah
Core size 6.81" x 1.88" x 5.2" (lxwxh)
Cell Weight 5.0 lbs
Charging Current; Standard Charge 0.5C, Max Charge 1C
Max Discharging Rate 2C
Cut-off Voltage; Charging 3.65V Discharging 2.5V.
Recommended SOC Window SOC 10%~90%
Internal Resistance 0.4mΩ Fresh Cell, 30% SOC
Working Temperature; Charging 0~60°C Discharging -30~60℃,
Storage Temperature; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃
Battery Management System (BMS) Specifications:
Power balancing 2.65V
Balance Release Volt 2.65V
Balance Current 40+/-5mA
Over-Discharge Detect Volt 2.8+/-0.05V
Over-Discharge Detect Delay 0.5V
Over-Discharge Volt Release 3.0+/-0.05V
Over Current Detect Volt 150mV
Over Current Detect Delay 9MS
Short Circuit Detect Delay 250uS
Main Circuit Resistor ≤10mΩ
Working current ≤100uA
Working Temp Range -20/+80ºC
Additional Applications:
Lithium-Ion prismatic deep cycle battery 12V 100Ah is ideal and preferred for the following applications.
Solar & wind power
Off-grid applications
RV, Marine, Golf carts
Electric vehicles
DIY electric storage
Backup power systems
Emergency lighting systems
Handling equipment
Uninterrupted standby power supply systems.
