Gauntlet 36V 200Ah LiFePO4 Prismatic Deep Cell Battery with 100A BMS

Gauntlet 36V 200Ah LiFePO4 Prismatic Deep Cell Battery with 100A BMS

$2,900.00 USD
$2,900.00 USD
$2,900.00 USD
Sold out

The 36V 200Ah Rechargeable Lithium Iron Phosphate Battery arrives unassemble and contains everything you need to build your own battery. It will arrive in 3 boxes of 12V 200Ah batteries with a BMS and additional parts.

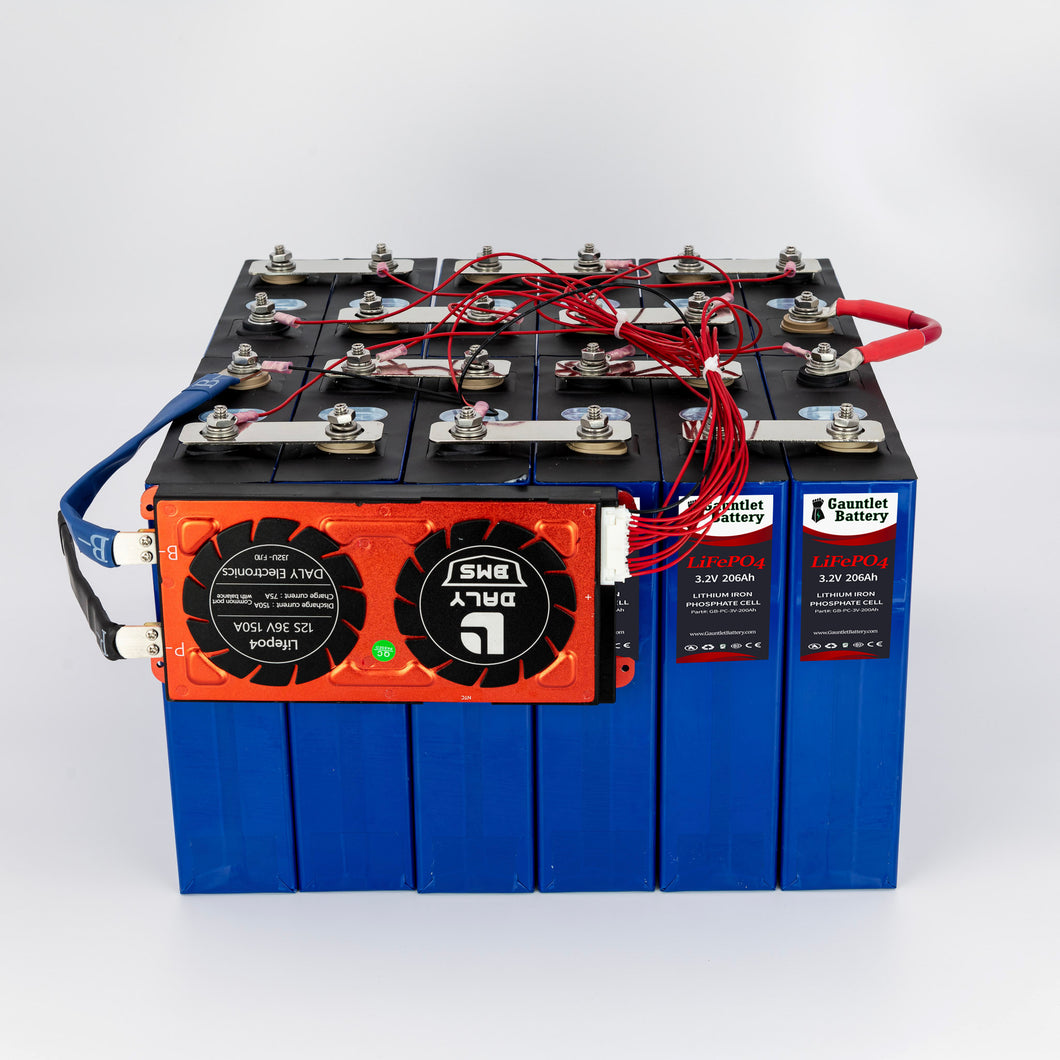

Includes 12 - Prismatic 3.2V 200Ah LiFePO4 Cells with Daly 12S 100A BMS, 11 Bus Bars, 24 Lugs, 6 - 36" Zip Ties, 1/2" x 72" 3M VHB Tape, and instructions to build the battery as shown in images.

Built with quality materials and easy to use our Gauntlet Battery rechargeable prismatic cells can be mounted in any orientation, even upside down.

Battery Specs:

  • Nominal Voltage: 36V
  • Capacity: 200Ah
  • Weight: 114 lbs, (51.2 Kg)
  • Size: 27”x7”x8.5” (lxwxh)
  • Cycle Life: 3000/3 years

    Prismatic Cell Specs:

  • Nominal Voltage 3.2V
  • Capacity 200Ah
  • Core size 6.81" x 2.12" x 8.14" (lxwxh)
  • Cell Weight 9.2 lbs
  • Charging Current; Standard Charge 0.5C, Max Charge 1C
  • Max Discharging Rate 2C
  • Cut-off Voltage; Charging 3.65V Discharging 2.5V
  • Recommended SOC Window SOC 10%~90%
  • Internal Resistance 0.2mΩ Fresh Cell, 30% SOC
  • Working Temperature; Charging -15~55°C Discharging -30~55℃,
  • Storage Temperature; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃

    Battery Management System (BMS) Specs:

  • Power Balancing 2.65V
  • Balance Release 2.65V
  • Balance Current 40+/-5mA
  • Over-Discharge Detect 2.8+/-0.05V
  • Over-Discharge Detect Delay 0.5V
  • Over-Discharge Release 3.0+/-0.05V
  • Over Current Detect 150mV
  • Over Current Detect Delay 9MS
  • Short Circuit Detect Delay 250uS
  • Main Circuit Resistor ≤10mΩ
  • Working Current ≤100uA
  • Working Temp Range -20/+80ºC

    Additional Applications:

    Lithium-Ion prismatic deep cycle battery 36V 200Ah is ideal and preferred for the following applications.

  • Solar/Wind power
  • Off-Grid Applications
  • RV, Marine, Golf carts
  • Electric Vehicles
  • DIY Electric Storage
  • Handling Equipment
