Gauntlet Battery 12V 200Ah LiFePO4 Prismatic Deep Cell Battery with 100A BMS

Gauntlet Battery 12V 200Ah LiFePO4 Prismatic Deep Cell Battery with 100A BMS

$1,050.00 USD
$1,050.00 USD
$1,050.00 USD
Sold out

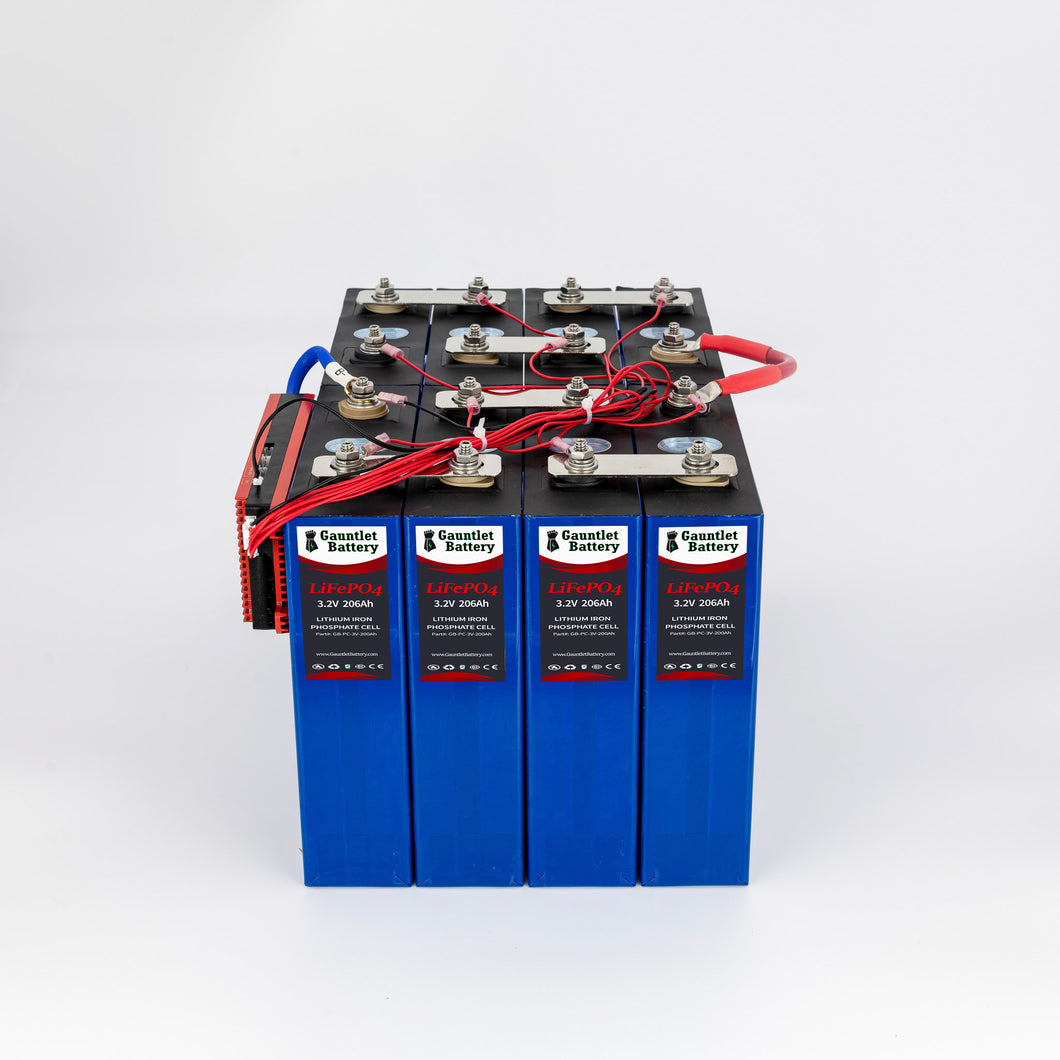

Includes 4 - Prismatic 3.2V 200Ah LiFePO4 Cells with Daly 4S 100A BMS, 3 Heavy Duty Bus Bars, 8 Lug Nuts, 2 - 36" Zip Ties, and 1/2" x 36" 3M VHB Tape and instruction manual.

Built with quality materials and easy-to-use Gauntlet Battery rechargeable prismatic cells can be mounted in any orientation, even upside down, and weighing only 36.8 lbs. It is half the weight of their lead-acid/ AGM battery counterparts.

Battery Specifications:

  • Nominal Voltage: 12V
  • Capacity: 200Ah
  • Weight: 36.8 lbs, (16.6 Kg)
  • Size: 10”x7”x8.5” (lxwxh)
  • Cycle Life: 3000/3 years

    Prismatic Cell Specifications

  • Nominal Voltage 3.2V
  • Capacity 200Ah
  • Core size 6.81" x 1.88" x 5.2" (lxwxh)
  • Cell Weight 5.0 lbs
  • Charging Current; Standard Charge 0.5C, Max Charge 1C
  • Max Discharging Rate 2C
  • Cut-off Voltage; Charging 3.65V Discharging 2.5V.
  • Recommended SOC Window SOC 10%~90%
  • Internal Resistance 0.4mΩ Fresh Cell, 30% SOC
  • Working Temperature; Charging 0~60°C Discharging -30~60℃,
  • Storage Temperature; ≤1 month: -10–45℃, ≤3 month: 0–30℃, ≤6 month: 20±5℃

    Battery Management System (BMS) Specifications:
  • Power balancing 2.65V
  • Balance Release Volt 2.65V
  • Balance Current 40+/-5mA
  • Over-Discharge Detect Volt 2.8+/-0.05V
  • Over-Discharge Detect Delay 0.5V
  • Over-Discharge Volt Release 3.0+/-0.05V
  • Over Current Detect Volt 150mV
  • Over Current Detect Delay 9MS
  • Short Circuit Detect Delay 250uS
  • Main Circuit Resistor ≤10mΩ
  • Working current ≤100uA
  • Working Temp Range -20/+80ºC

    Additional Applications:

    Lithium-Ion prismatic deep cycle battery 12V 200Ah is ideal and preferred for the following applications.

  • Solar & wind power
  • Off-grid applications
  • RV, Marine, Golf carts
  • Electric vehicles
  • DIY electric storage
  • Backup power systems
  • Emergency lighting systems
  • Handling equipment
  • Uninterrupted standby power supply systems
