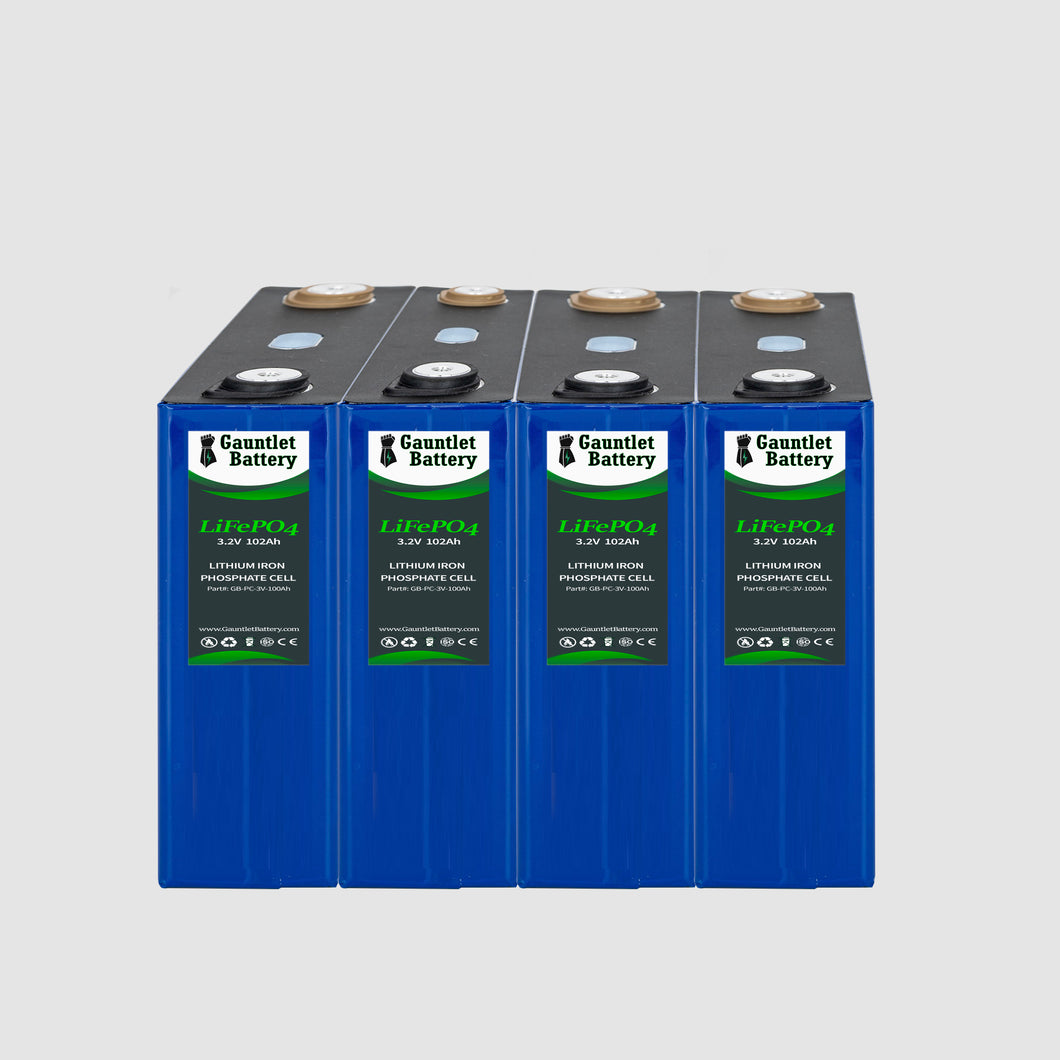

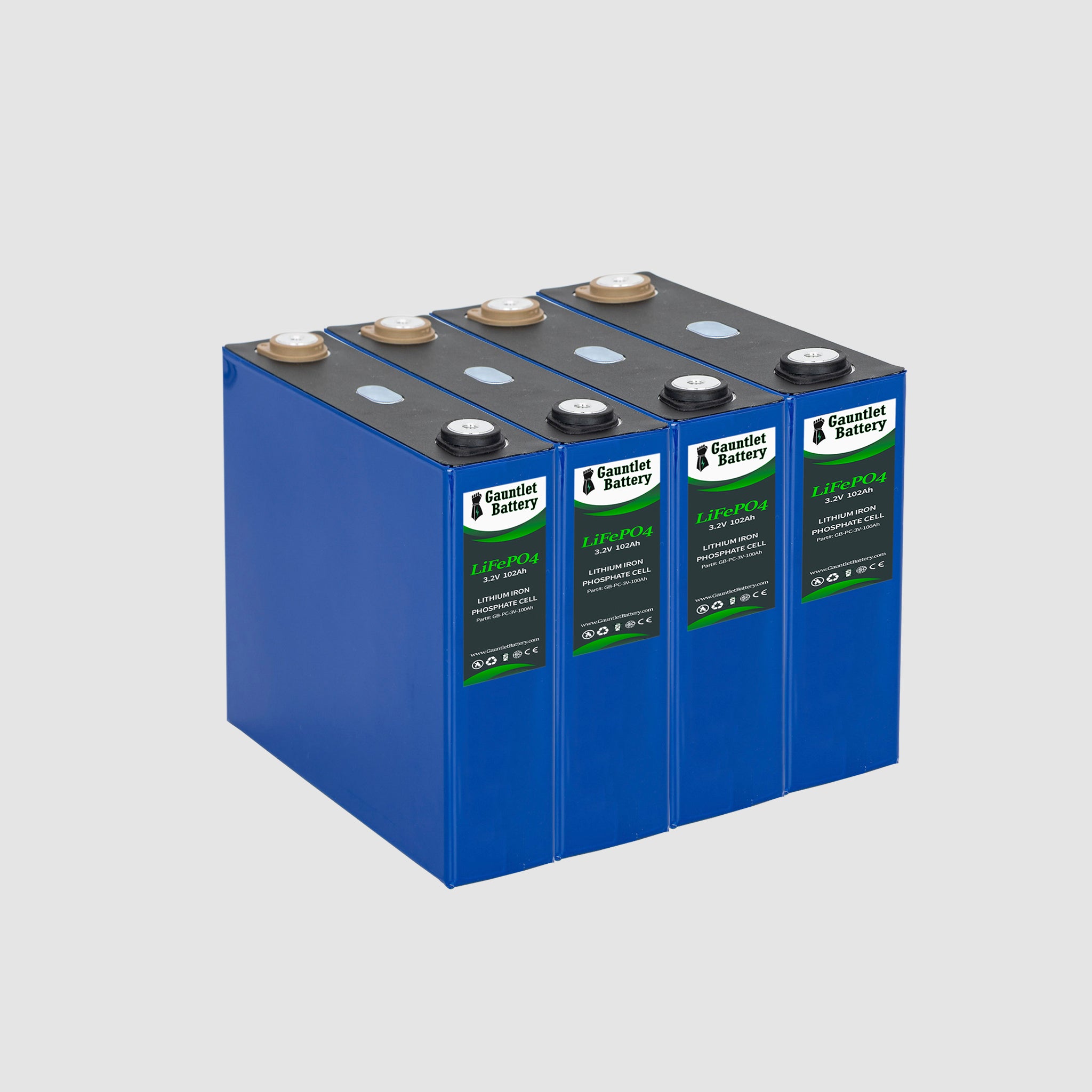

Includes 4 - 3.2V Prismatic 100Ah LiFePO4 Cells with 3 Bus Bars and 8 Lug Nuts.
Built with quality materials and easy-to-use Gauntlet Battery Rechargeable Prismatic Cells can be mounted in any orientation, even upside down, and weighing only 20.5 lbs, It is half the weight of their lead-acid/ AGM battery counterparts.
Battery Specifications:
Manufacturer: Ganfeng Lithium
Nominal Voltage: 12V
Capacity: 100Ah
Weight: 20.5 lbs, (9.3 Kg)
Size: 9”x7”x5.5” (l x w x h)
Cycle Life: 3000/3 years
Prismatic Cell Specifications:
Nominal Voltage 3.2V
Capacity 100Ah
Core size 6.81" x 1.88" x 5.2"
Cell Weight 5.0 lbs
Charging Current; Standard Charge 0.5C, Max Charge 1C
Max Discharging Rate 2C
Cut-off Voltage; Charging 3.65V Discharging 2.5V
Recommended SOC Window SOC 10%~90%
Internal Resistance 0.4mΩ Fresh Cell, 30% SOC
Working Temperature; Charging 0~60°C Discharging -30~60℃,
Storage Temperature; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃
Additional Applications:
